| Models |

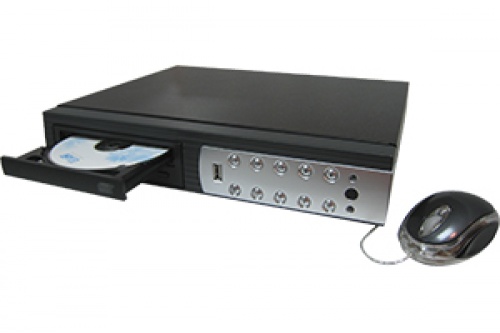

416 |
| Video Format |
NTSC/PAL |
| Video Compression |
MJPEG |
| Internet Transmitting / Compression |
MPEG4 |
| Display Frame Rate |
480/400fps |
| Recording Frame Rate (Auto balance) |
120/100fps |
| Display Resolution |
640x448 / 640x544 |
| Recording Resolution |
640x224/640x272
320x224/320x272 |
| Display Division |
Single / Sequence / Split (1/4/8/16) |
| Video Input |
BNCx16 |
| Video Output |
Video outx1, Spot monitor x1,
S-Videox1, VGAx1 |
| Audio In/Out |
1/1 |
| Alarm In/Out |
16/1 |
| Recording Mode |
Continuous / Schedule / Motion Detection / Sensor |
| Recording Quality |
High/Normal/Low |
| Search Mode |
Time/Event |
| Storage Support |
Type 1: DVR-RW x 1,
internal 3.5” HDD x 2 (SATA)
Type2: Internal 3.5” HDD x 4 (SATA) |
| Backup Device |
USB stick / DVD±RW (option) |
| Serial Connectors |
USB 2.0x1,
Mouse (Combo USB & PS/2 protocol)x 1,
RS485 x 1, IR receiverx1 (optional) |
| Network Connection |
10/100 Ethernet(RJ-45) |
| Network Protocol |
TCP/IP, Static IP, DHCP, PPPOE , DDNS
(through Router) |
| Network Remote |
Remote monitoring, recording, playback
and PTZ by Client Program and IE browser. |
| Power Supply |
Input:AC100~240V, 50/60Hz
Output:DC12V Hz |
w/one DVD-RW & two internal HDD
Model:6.6A |
w/four internal HDD
(SATA) Model:8.5A |
| Dimension(WxHxD) |
430X80X320mm |
| Weight |
5.2kg (W/O HDD) |
